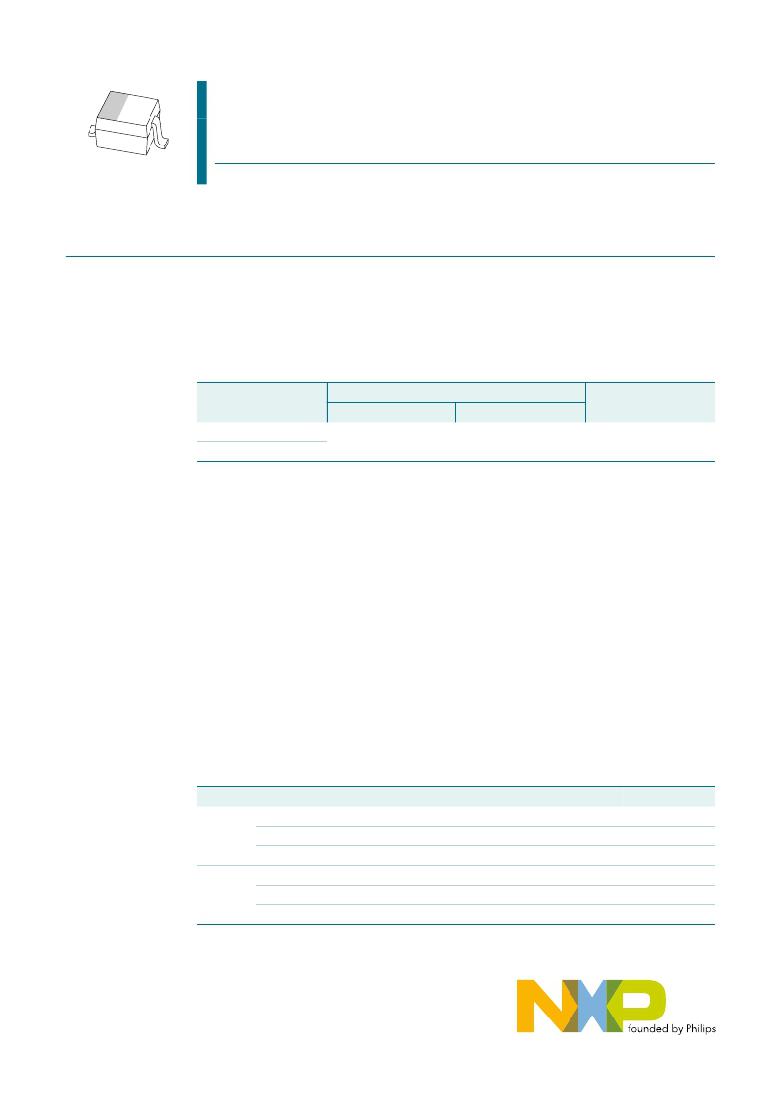

PESD5V0S1UA; PESD12VS1UA

Unidirectional ESD protection for transient voltage

suppression

Rev. 01 — 9 February 2009

Product data sheet

1. Product pro?le

1.1 General description

Unidirectional ElectroStatic Discharge (ESD) protection diodes in a very small

Surface-Mounted Device (SMD) plastic package designed to protect one signal line

from the damage caused by ESD and transient overvoltage.

Table 1.

Product overview

Type number

Package

NXP

JEITA

Con?guration

PESD5V0S1UA

SOD323

SC-76

single

PESD12VS1UA

1.2 Features

I Transient Voltage Suppression (TVS)

protection of one line

I Max. peak pulse power: P PP = 890 W

I Low clamping voltage: V CL = 19 V

I Low leakage current: I RM = 300 nA

1.3 Applications

I Computers and peripherals

I Audio and video equipment

I Cellular handsets and accessories

1.4 Quick reference data

Table 2. Quick reference data

T amb = 25 ° C unless otherwise speci?ed.

I ESD protection up to 30 kV

I IEC 61000-4-2; level 4 (ESD)

I IEC 61000-4-5 (surge); I PP = 47 A

I AEC-Q101 quali?ed

I Communication systems

I Portable electronics

I Medical and industrial equipment

Symbol

Parameter

Conditions

Min

Typ

Max

Unit

V RWM

reverse standoff voltage

C d

PESD5V0S1UA

PESD12VS1UA

diode capacitance

PESD5V0S1UA

PESD12VS1UA

f = 1 MHz; V R = 0 V

480

160

530

180
